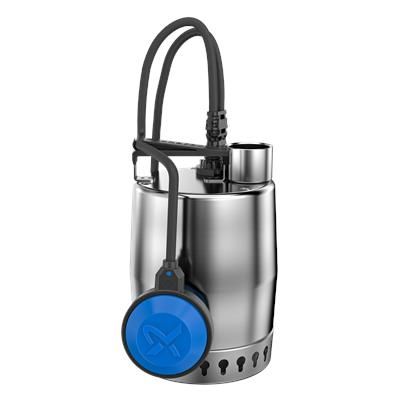

Grundfos KP150-A1 Sump Pump
Unilift KP pumps are submersible drainage pumps suitable for both temporary and permanent free-standing installation. They can be used for pumping drain water or grey wastewater. They are also suitable for installation in collecting tanks.
All Unilift KP pumps can be supplied with or without a level switch. The variants are designated as A, AV or M, for automatic or manual operation. The Unilift KP-AV (Niro) variant for narrow pits is supplied with a non-return flap valve for installation in the outlet. The strainer is clipped onto the pump housing.
The Unilift KP. Single-stage, submersible, stainless steel drainage pump is a robust design with upward-pointing discharge port positioned on the top of the pump. The outer casing is made in one piece. The mains cable and the cable of the level switch are both connected to a single, vulcanized, water-tight plug which is inserted in a socket on the hermetically-sealed stator housing. The motor is a single- or three-phase synchronous canned motor with liquid-filled rotor chamber and water-lubricated bearings.
Max Head: 5.5m
Max Flow: 140 LPM
Rated Power - P1: 0.3kW
Rated Voltage: 1 x 230-240 V
Current: 1.3 A
Discharge: 32mm BSPT
Max Particle: 10mm
